Product parameters:
Instrument model: SPB-3 (gas phase specific)
Output air pressure: 0-0.6Mpa (factory set A: 0.4Mpa B: 0.5MPa)
Output flow rate: 0-3000ml/min
Output air quality: dry, clean, oil-free
Working power supply: 220V ± 10%; 50Hz ± 5%
Maximum power: 560W
Environmental conditions: Environmental humidity: 0-40 ℃, relative humidity: ≤ 75%
External dimensions: 390 * 265 * 670mm
Weight: approximately 26KG
- Product Details
- Product manual

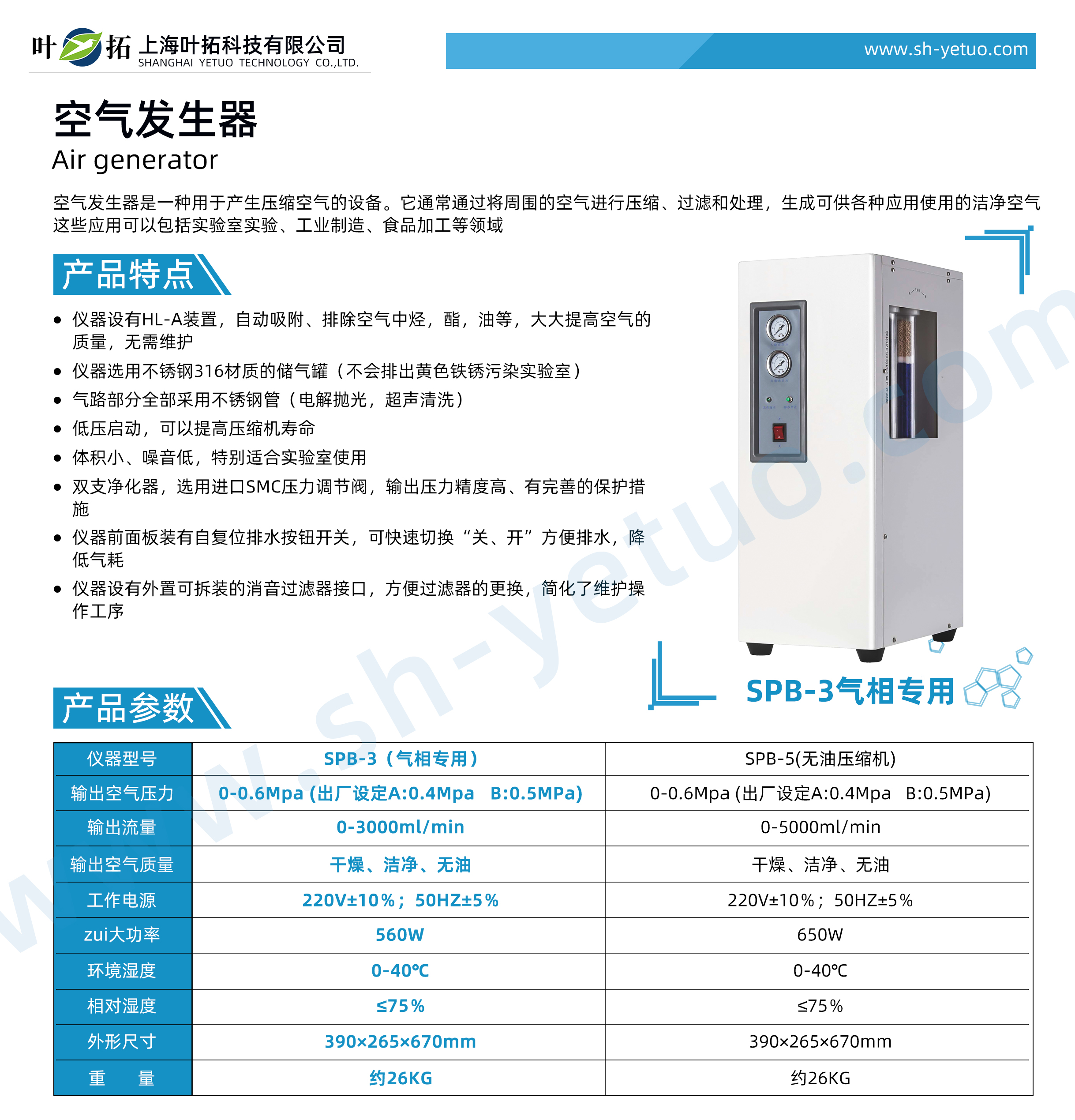

Yetuo SPB-3 air generator (gas phase specific)
Model: SPB-3
Product Overview: An air generator is a device used to generate compressed air. It typically compresses, filters, and processes the surrounding air to generate clean air for various applications, including laboratory experiments, industrial manufacturing, food processing, and more.
Product Features of Yetuo SPB-3 Air Generator (Gas Phase Special)
The instrument is equipped with an HL-A device, which automatically adsorbs and removes hydrocarbons, esters, oils, etc. from the air, greatly improving the quality of the air without maintenance. The instrument uses a stainless steel 316 material gas storage tank (to prevent the discharge of yellow rust pollution in the laboratory).
The gas path is entirely made of stainless steel tubes (electrolytic polishing, ultrasonic cleaning).
Low pressure start-up effectively improves the lifespan of the compressor.
Small size and low noise, especially suitable for laboratory use.
Double purifier, two-stage regulator, imported SMC pressure reducing valve, high output pressure accuracy, and complete protection measures.
The front panel of the instrument is equipped with a self resetting drainage button switch, which can quickly switch between "off" and "on" to facilitate drainage and reduce air consumption.
The instrument is equipped with a compressor overcurrent protector, which prevents compressor damage due to overload and greatly reduces maintenance costs.
